Unlocking True eBike Power: The Hidden Science Inside High-Current Batteries
- Oct 24
- 4 min read
Why it matters
When you hop on your eBike ready, you expect smooth throttle response, steady climbs, and no surprises. What many riders don’t realize is that the battery isn’t just a pack of cells — it’s the foundation of every ride’s performance. In this post we’ll lift the hood and explore the lesser-seen factors in battery build quality that make the difference between “it works” and “it works beautifully”.
What Most Riders Miss: Not Just “How Many Ah”, But “How Much Current + How Cleanly Delivered”
When shopping batteries, amp-hours (Ah) often steal the spotlight. But what really impacts your ride is how much current the battery can deliver under demand — and how well the whole system (cells + busbars + wiring + BMS) supports that current.
For example, if your motor and controller draw 80 amps and your battery’s maximum continuous output is also 80 amps, you’re operating at its full rated capacity. That means more heat, more wasted energy, more voltage sag. If instead you use a battery rated at 180 amps for the same 80-amp demand, the battery is operating in its “comfort zone”—cooler, more efficient, and more reliable.
Four Hidden Build-Quality Factors That Change the Game
1. Cell connection conductance
It’s not just the cells themselves — it’s how well they’re connected. Many standard packs use thin nickel-plated steel strips for cell interconnects, which significantly increase internal resistance. At Bicycle Motor Works, we use 0.5 mm pure copper busbars, which are ~4.5 × more conductive than the thin nickel strips most packs use. Less resistance = less heat = less voltage sag = better ride.
2. Wiring gauge and quality
Even the best cells can be bottlenecked by poor wiring. Using thicker 10-gauge wire (instead of 12- or 14-gauge) reduces resistance in the pack’s output path — meaning your battery can sustain high current without turning into a heater.
3. Thermal & voltage sag management
As the pack is called on to deliver more current, internal resistance and heat increase. Heat = faster degradation. Voltage sag = poor throttle response, especially under load (hills, acceleration). A high-current battery design keeps the pack operating at a lower percentage of its max capability, thereby reducing both heat and sag.
4. Over-spec’ing your system for longevity
If you use a battery rated well above your actual draw, you give the pack breathing room. This reduces stress on cells, increases cycle life, and gives you real-world value. The original post pointed out that where conventional packs may last ~500 cycles, high-current packs might deliver 700-1000 or more.
Why High-current ebike power?
Faster, smoother throttle response: With less voltage sag, your system doesn’t hesitate when you demand power.
Better climb performance & off-road capability: When the terrain gets tough, the battery holds up rather than collapsing.
Cooler operating temperature: Heat is the enemy of battery longevity. A well-designed high-current pack stays cooler.
Longer lifespan = better value: Up-front cost may be higher, but fewer replacements means lower cost over time.
OUR RECOMMENDED HIGH-CURRENT COLLECTION
#1 Molicel P50B Collection
Top choice for all-around power + range: Molicel P50B – Highest capacity (5,000 mAh) and highest continuous current (60 A). Manufacturer specs confirm 60 A continuous with 80 °C cut-off and low impedance, plus strong energy density (~265 Wh/kg). Great for high-draw mid-drives and riders who want both torque and runtime.
#2 Molicel P45B
Best balanced performer: Molicel P45B – 4,500 mAh, 45 A continuous, notable volumetric & gravimetric energy density; ideal if you want excellent punch with slightly lower cost than P50B.
#3 Molicel P42A
Proven workhorse/value: Molicel P42A – 4,200 mAh, 45 A continuous. Stable thermal behavior and widely used in performance packs; a solid “no-wrong-choice” cell.
#4 Ampace JP40
Peak-power specialist: Ampace JP40 – 4,000 mAh but 60 A continuous (70 A with temp cut-off) and very high power density; perfect when throttle response and hill-climb punch matter more than absolute range.
COMPARISON CHARTS
SHOPPING GUIDE
Ready to feel the difference a high-current pack makes? Take a look and select a pack that suits your needs.
Want maximum performance per pack (range + torque)? → Go P50B.
Want a balanced, high-current build with great density? → P45B.
Want proven 45 A performance at a friendly price? → P42A.
Building for burst power / aggressive riding over longest range? → JP40.
Should You Upgrade? Here’s a Quick Checklist
Ask yourself:
Do you experience voltage sag (e.g., your system shows a healthy voltage but then shuts off under load)?
Do you ride hills, off-road, or in hot conditions regularly?
Is your current pack struggling under your motor/controller demand?If you answered “yes” to any of these, then an upgrade to a high-current pack makes strong sense.
At Bicycle Motor Works: Built-In Performance

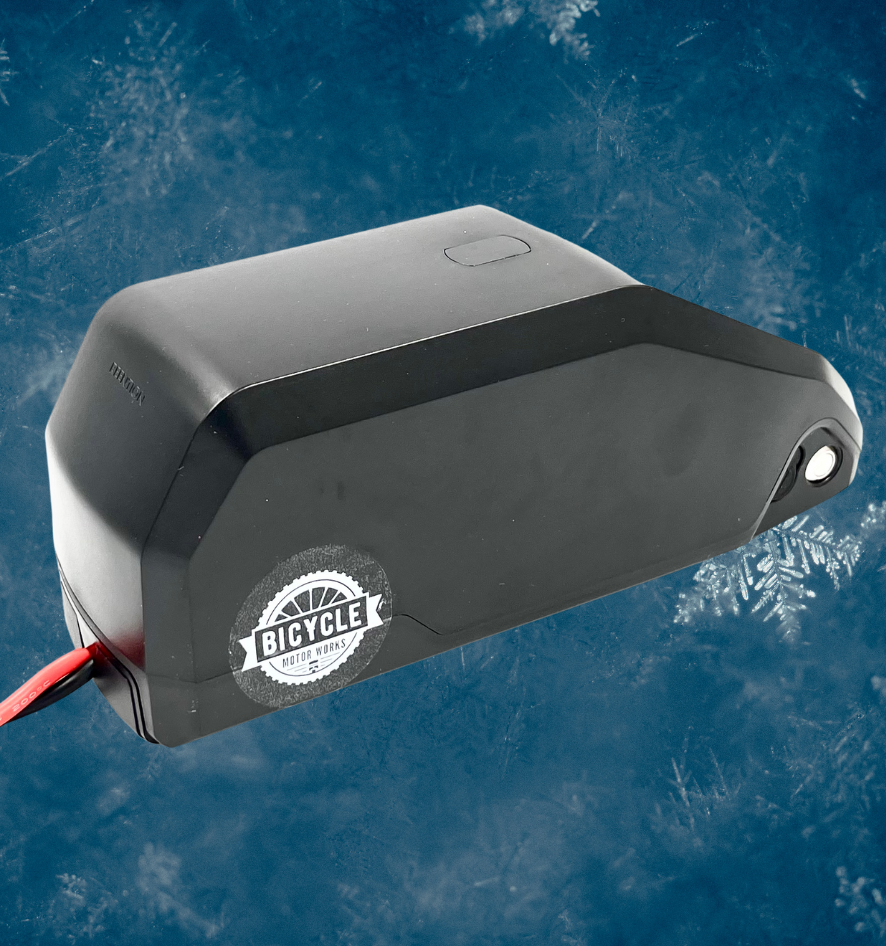

At Bicycle Motor Works, we build each pack in our Bethlehem, PA facility with premium cells (e.g., Molicel P45B / P50B), thick copper busbars, 10-gauge wiring, and BMS systems tuned for high repeat-performance workflows. That means when you select one of our high-current packs, you aren’t just buying capacity — you’re buying engineered reliability and ride-ready power.
👉 Explore our High-Current eBike Battery Packs collection that will power you through the coldest months. [WINTER-READY COLLECTION].
Final ThoughtS - LETS TALK ABOUT What you need?
If you’re chasing performance, responsiveness, longevity and just better ride feel, the battery is far more than a “box of cells” — it’s the foundation of your system. A high-current battery built with the right attention to wiring, conductance, thermal, and sag management is one of the best upgrades you can make. Get ready to ride with confidence.
Contact us, we're ready to help you select the right one for you.
Email: info@bicyclemotorworks.com or Call: 484-793-2541
