DIY 3-D Print eBike Battery Mounting System

Build your own E-Bike Battery Mount using your 3-D printer! Thanks to Steven Huff, you can have this mounting system for absolutely FREE.

Description

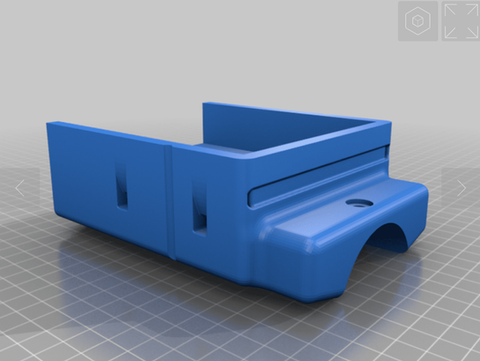

FREE DOWNLOAD 3-D PRINTING FILES – BATTERY PACK MOUNT

Created By: Steven Huff

Print Settings Used by Creator:

• Printer brand: Creality
• Printer: Ender 3
• Rafts: Yes
• Supports: Yes
• Resolution: I used adaptive layer with a .2 layer height parameter
• Infill: 50%
• Filament brand: Amazon Basics
• Filament material: PETG

Notes: I didn’t use a raft, but a brim to increase surface area adhesion to the build plate. Also I did use some supports but its important you use “touching build plate” or something similar since the zip ties need to pass through the holes.

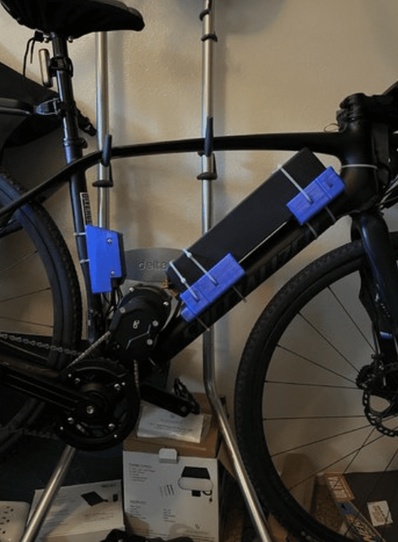

Bike Set-Up: CYC Gen 2 Pro on a 2016ish Specialized Diverge. Bicycle Motor Works E-Bike Battery 72v 15ah

Instructions:

• Click “Go to Product Files”
• Read more about this product and follow download instructions.

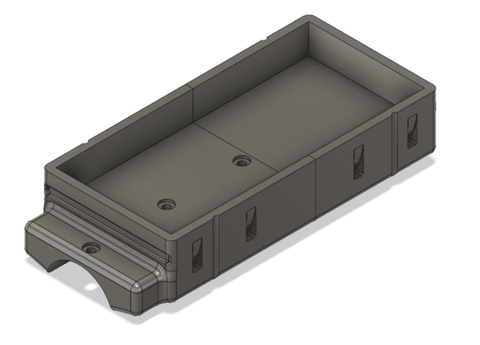

• Includes the .step file, if you need to edit anything.
• Need Help? Ask Steven Huff.

Product Files

Learn about the Designer: Who is Steven Huff?

If anyone wants to reach out and ask me questions about my design, if they need any help or if they want me to print/ship it to them they can use my email (shuff57@gmail.com) or my instagram (@itssteven57)

Bicycle Motor Works Wants To Thank Steven For His Generosity.

Share The Love! Donations Can Be Made By “Go To Product Files” And Then Click, “Tip Creator”.
