CYC Photon Pro

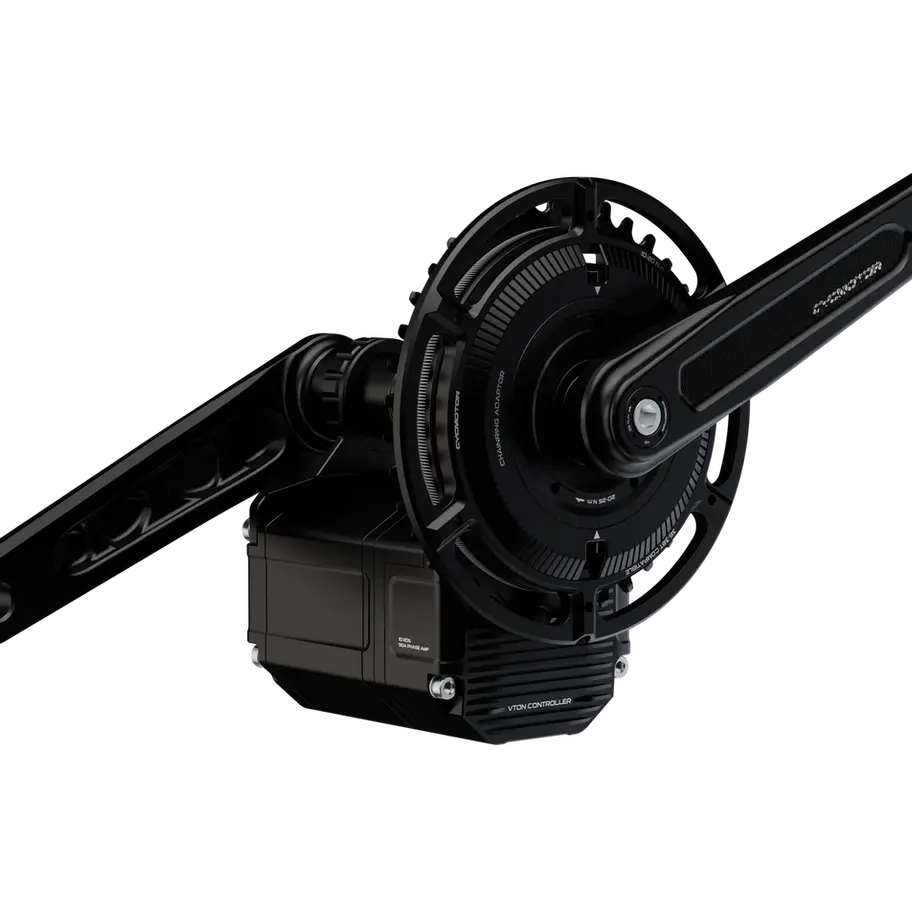

CYC Photon Pro Mid-Drive E-Bike Conversion Kit

High-Performance, All-Terrain E-Biking

The CYC Photon Pro is a compact, high-performance mid-drive conversion kit designed for riders who want quiet operation, natural pedal response, and impressive climbing power. It converts a wide range of commuter, mountain, fat-tire, and compatible carbon-frame bicycles into capable e-bikes while preserving responsive handling, ground clearance, and a clean appearance.

Unlike basic cadence-only systems, the Photon Pro combines torque and cadence sensing. It measures both how hard and how quickly you pedal, then delivers assistance in proportion to your effort. The result is smooth, predictable power in city traffic, on steep climbs, and across demanding off-road terrain.

At just 3.2 kg without cranks, the Photon Pro adds substantial performance without excessive weight or bulk. Multiple bottom-bracket, chainring, crank, battery, and control options allow the system to be tailored to a wide variety of builds.

Every aspect of the Photon Pro reflects extensive feedback from real-world riders. Its robust sprag clutch, open CAN bus integration, weather-resistant construction, and waterproof wiring make it a versatile platform for serious e-MTB builds, long-range commuters, and experienced DIY enthusiasts.

Key Features

• Smooth, quiet mid-drive motor performance
• Responsive torque and cadence sensing
• Up to 150 Nm of peak torque
• Compact, lightweight 3.2 kg drive unit
• Configurable power and assistance settings
• Firmware options for 250W, 750W, and 1500W configurations
• Higher-output off-road configurations available, depending on the selected controller, battery, and system setup
• Bottom-bracket compatibility from 68 to 120 mm
• Multiple chainring and crank-arm options
• Compatible with 36V to 72V battery systems
• Bluetooth configuration through the CYC Ride Control app
• Open CAN bus integration
• Waterproof wiring and weather-resistant components

The Photon Pro can be configured for Class 1, Class 2, or Class 3 applications, depending on the selected settings, controls, and local regulations. Higher-powered configurations are intended for private-property or off-road use where permitted.

Specifications

CYC Ride Control App

The CYC Ride Control app, available for iOS and Android, is the Photon Pro’s primary configuration and monitoring system. The app connects to the controller through Bluetooth, allowing you to customize the motor’s behavior for your bike, riding style, and terrain.

With the app, you can:

• Configure two separate riding or power modes
• Adjust pedal-assist response, throttle behavior, and gear preferences
• Calibrate and configure the torque sensor
• Monitor system performance
• Configure battery settings and connected peripherals
• View system warnings and clear errors

During initial setup, the app is used to enter important information such as battery voltage, wheel diameter, and applicable regional power or speed limits. It is also required to review and clear certain system warnings or errors.

What’s Included

Your Photon Pro kit includes the core components required for the conversion:

• Complete motor, controller, and gear-reduction assembly
• Selected bicycle chainring
• ISIS-splined bottom bracket and spindle
• Choice of 160 mm or 170 mm crank arms
• Torque-sensing freewheel module
• Selected display or control option
• Waterproof wiring harness
• Bottom-bracket spacers for frame adaptability
• Thumb throttle, when selected
• Magnetic speed sensor
• User manual and installation documentation

Battery sold separately.

Available chainring, crank, throttle, display, and controller options may vary according to the configuration selected when ordering.

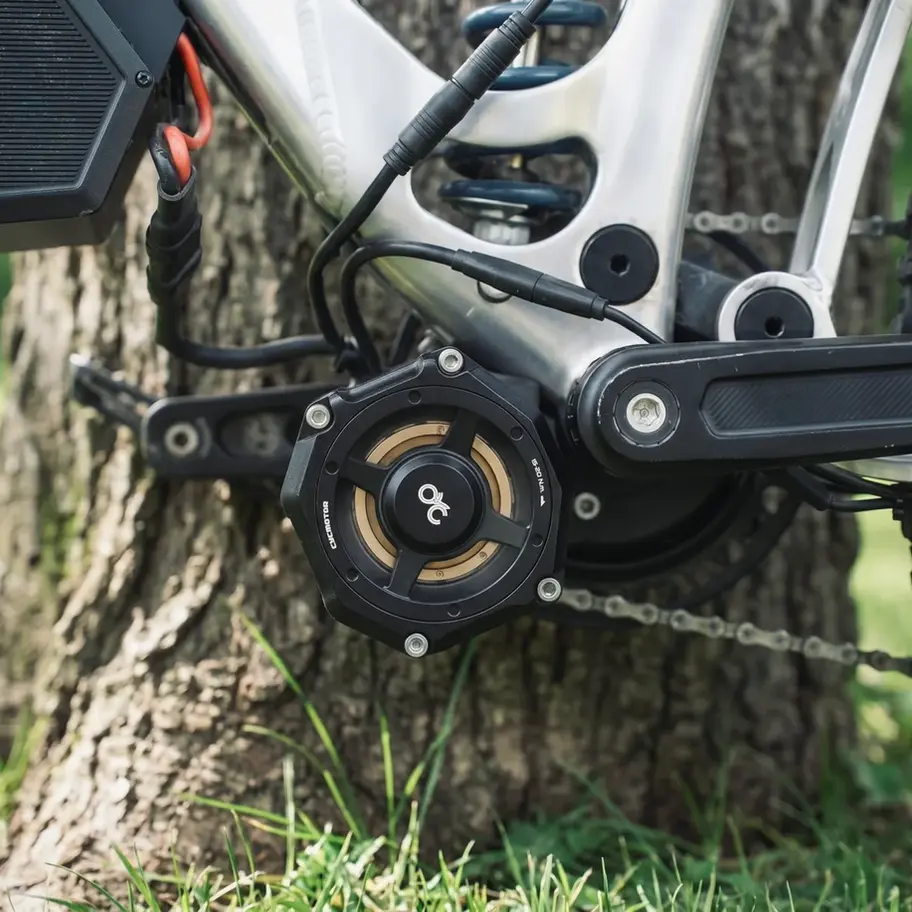

Frame and Bike Compatibility

The Photon Pro is designed to fit a broad range of bicycle frames, including many conventional mountain bikes, commuters, fat bikes, and select carbon-frame bicycles. Bottom-bracket widths from 68 to 120 mm are supported through the available fitment options.

Frame geometry, chainstay clearance, bottom-bracket construction, and chainline should always be checked before ordering—especially on carbon frames, internally routed frames, and unusually shaped full-suspension bicycles.

Choosing a Battery (our recommendations):

• Maximum Performance: 72V 15Ah Molicel P50B — 90A Continuous
• Compact Performance: 72V 10Ah Molicel P50B — 80A Continuous
• Street and Trail: 52V 16.8Ah Molicel P42A Bluetooth — 80A Continuous

Installation Resources

The following documentation is available to assist with planning and installation:

• Photon brochure
• Photon general overview
• Full-size 1:1 Photon installation template
• User manual

The Photon Pro is well suited to experienced DIY builders. Riders who are unfamiliar with bottom-bracket removal, drivetrain alignment, electrical installation, or e-bike programming may wish to have the system installed by a qualified bicycle or e-bike technician.

Warranty

CYC motor kits include a one-year warranty from the date of shipment, subject to the manufacturer’s warranty terms and exclusions.

Need help? Contact us for more information or ask to be notified with updates.
